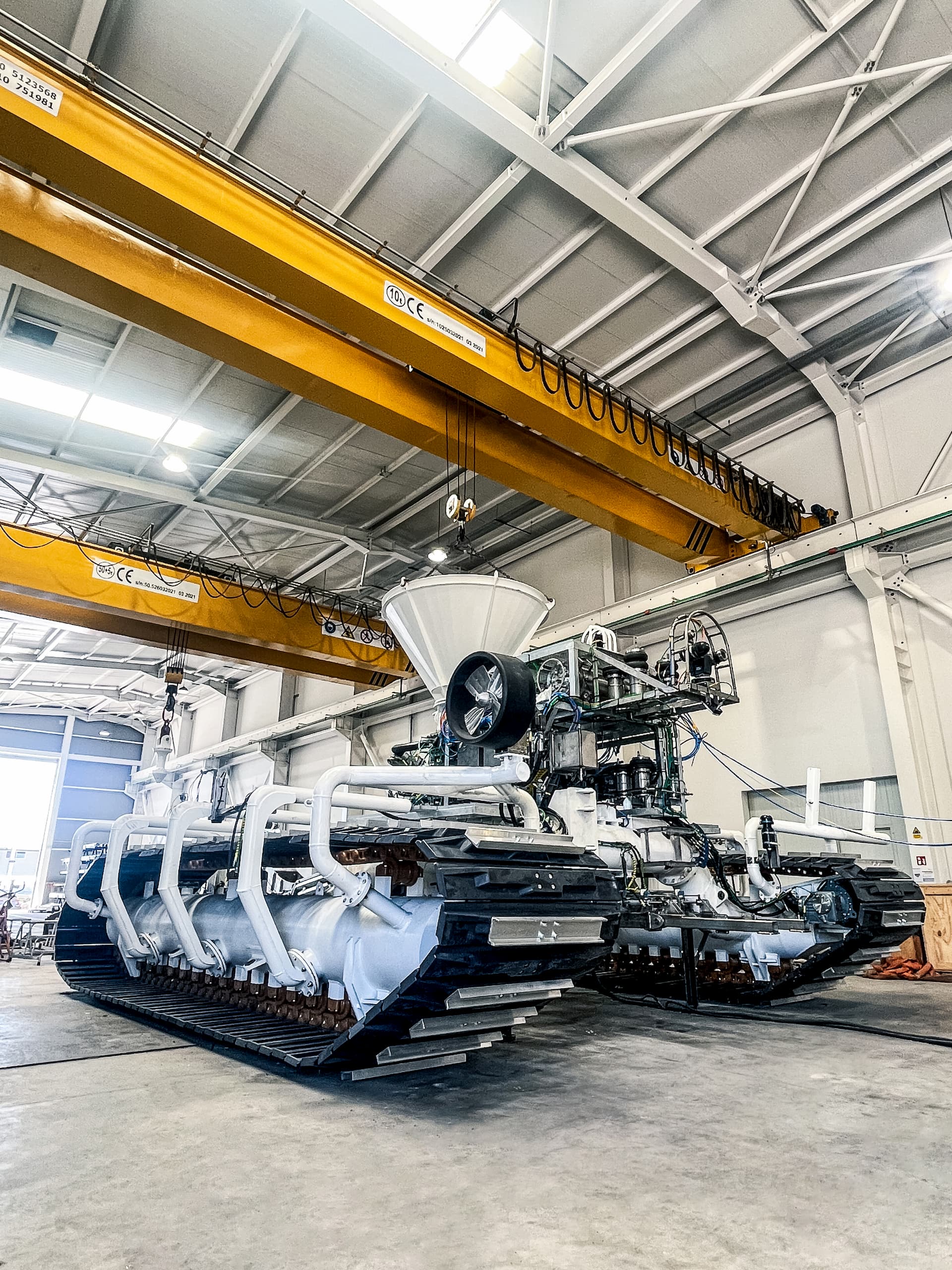

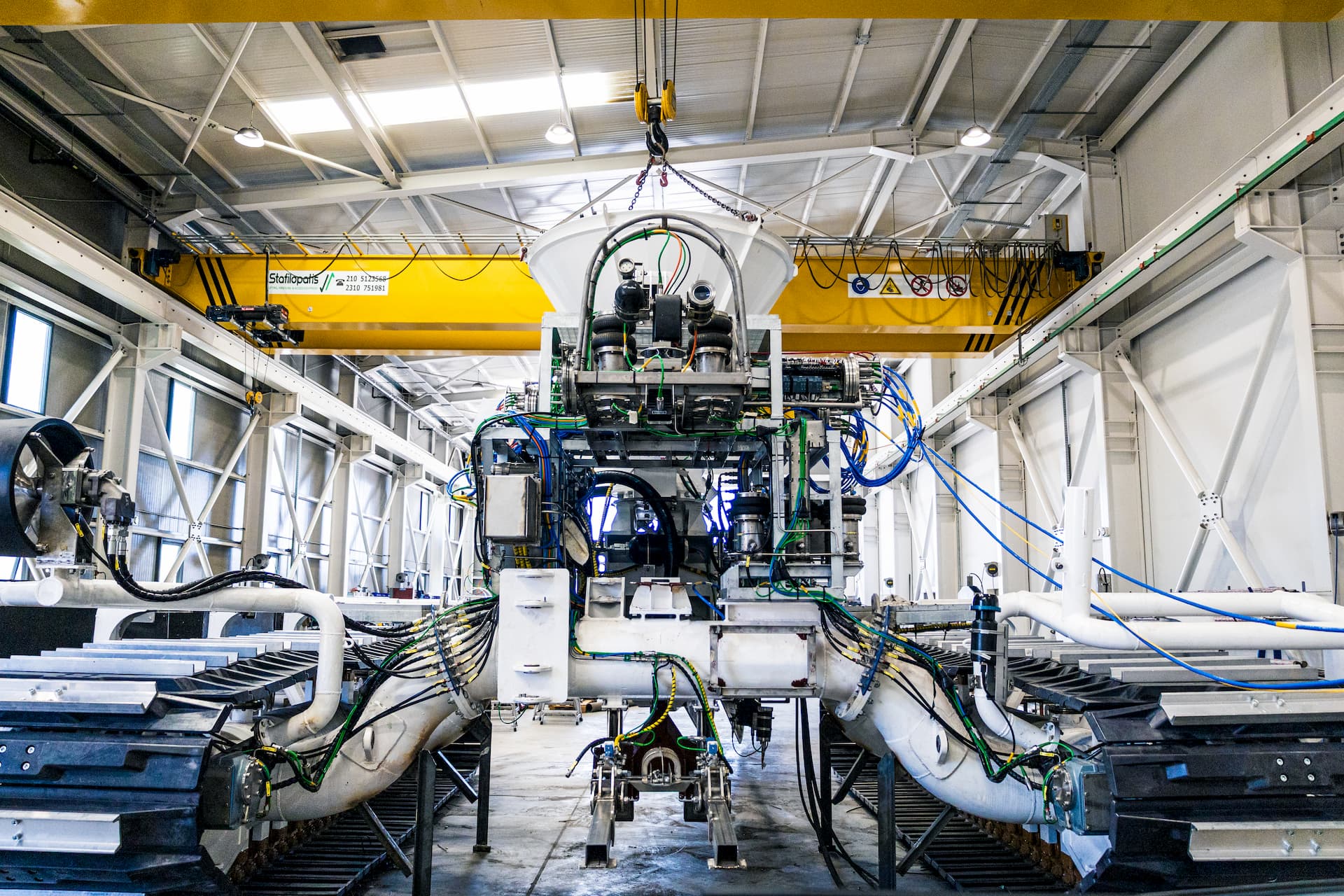

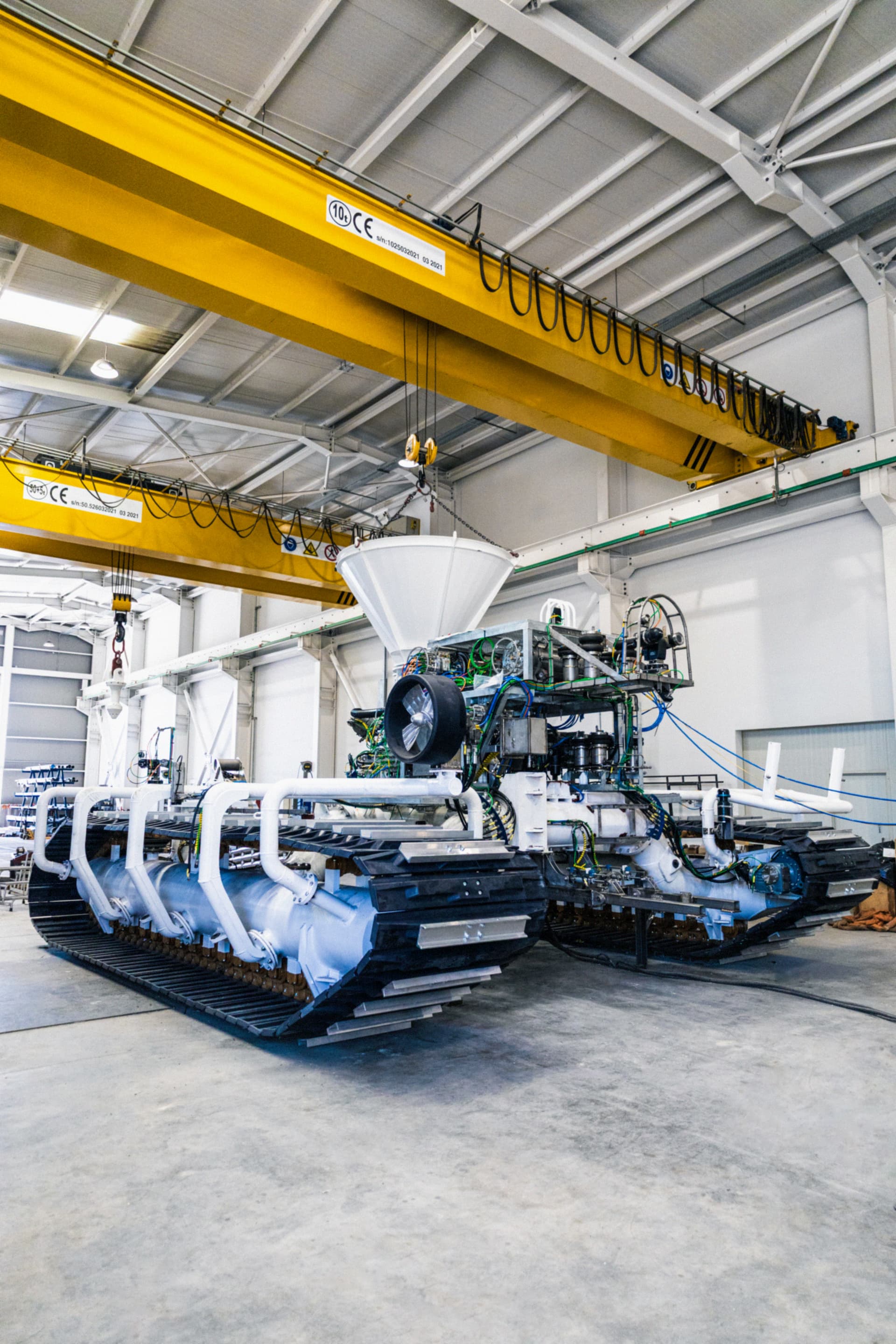

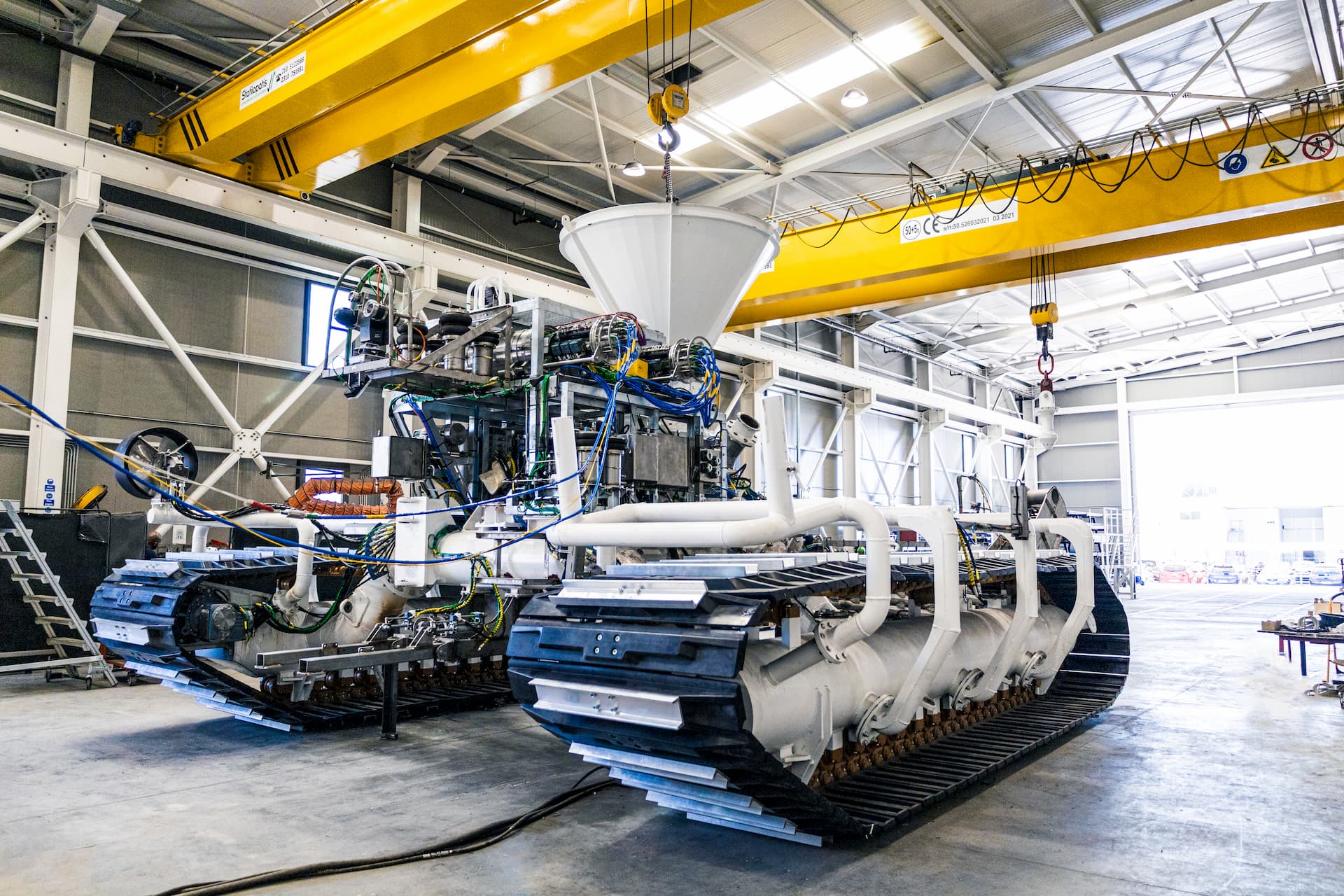

AssoTrencher V Mk5 is the fifth evolution in the AssoTrencher V series, continuing the legacy of adaptable trenching performance, across a wide range of seabed environments, with a focus on shallow waters and tidal environments.

Mk5 introduces several key advancements, most notably the integration of a custom-engineered jetting-mode cable guide system, specifically developed to optimize operations in complex seabed conditions. This new configuration significantly enhances burial precision and operational stability.

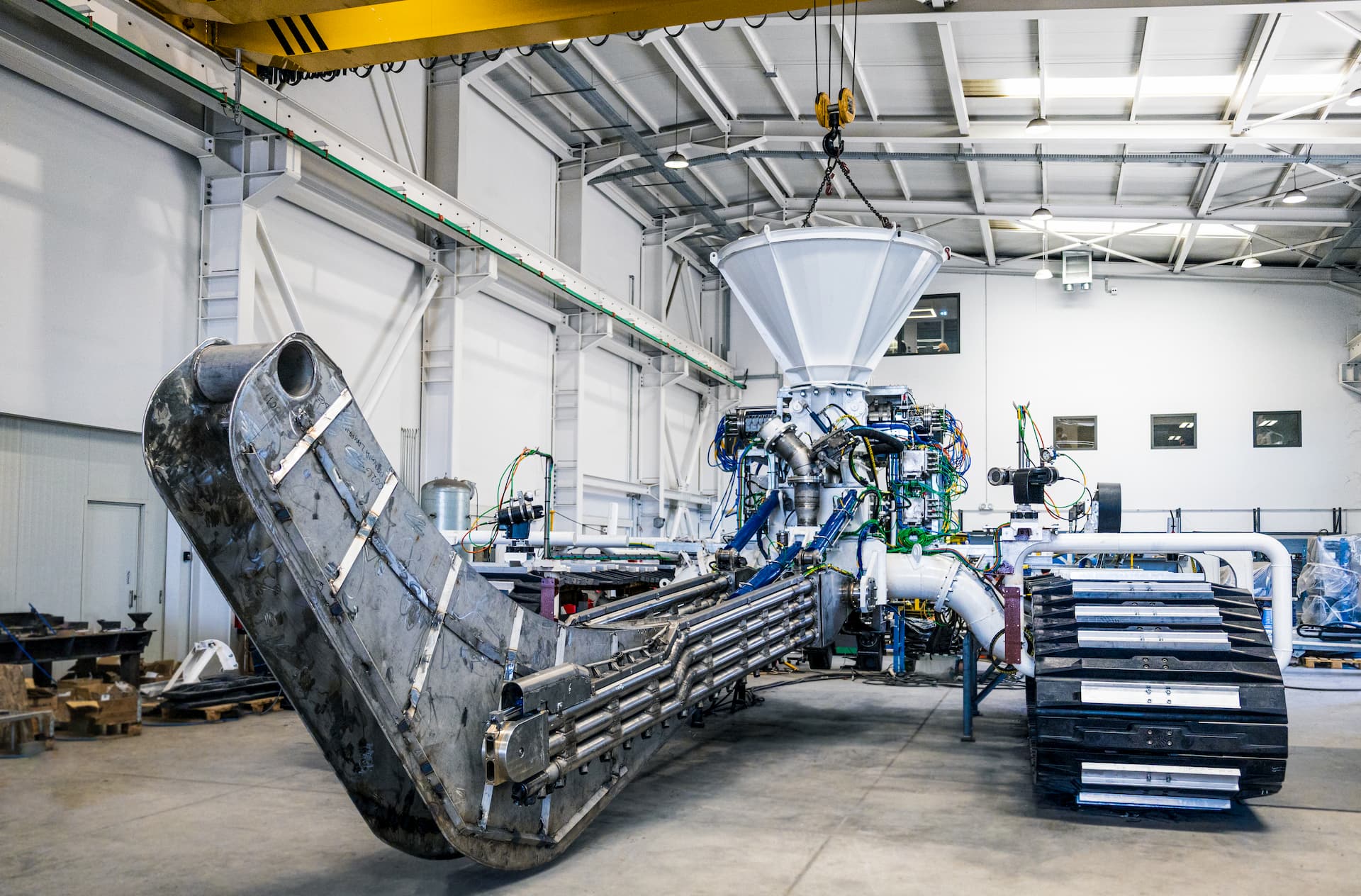

It is designed to support a wide array of interchangeable trenching tools, including cutting chain & jetting swords configurations, thus ensuring seamless adaptation to diverse soil conditions, from soft sediment to more consolidated formations. An upgraded track system provides optimized weight distribution tailored to the operational environment, maximizing traction.

AssoTrencher V Mk5 stands as a versatile and high-performance trenching solution, purpose-built to meet the increasing demands of submarine cable installation with precision, adaptability, and efficiency.

  • Dimensions
    11.2 x 6.3 x 4.3 m
  • Total Power
    950kW
  • Weight
    30T in air
  • Chain
    Up to 3 MPa soil strength
  • Seafloor Gradient
    15 degrees pitch & roll
  • Depth Rating
    100m
  • Jet
    Up to 120 kPa soil strength

Key Features

  • Jetting-mode cable guide system
