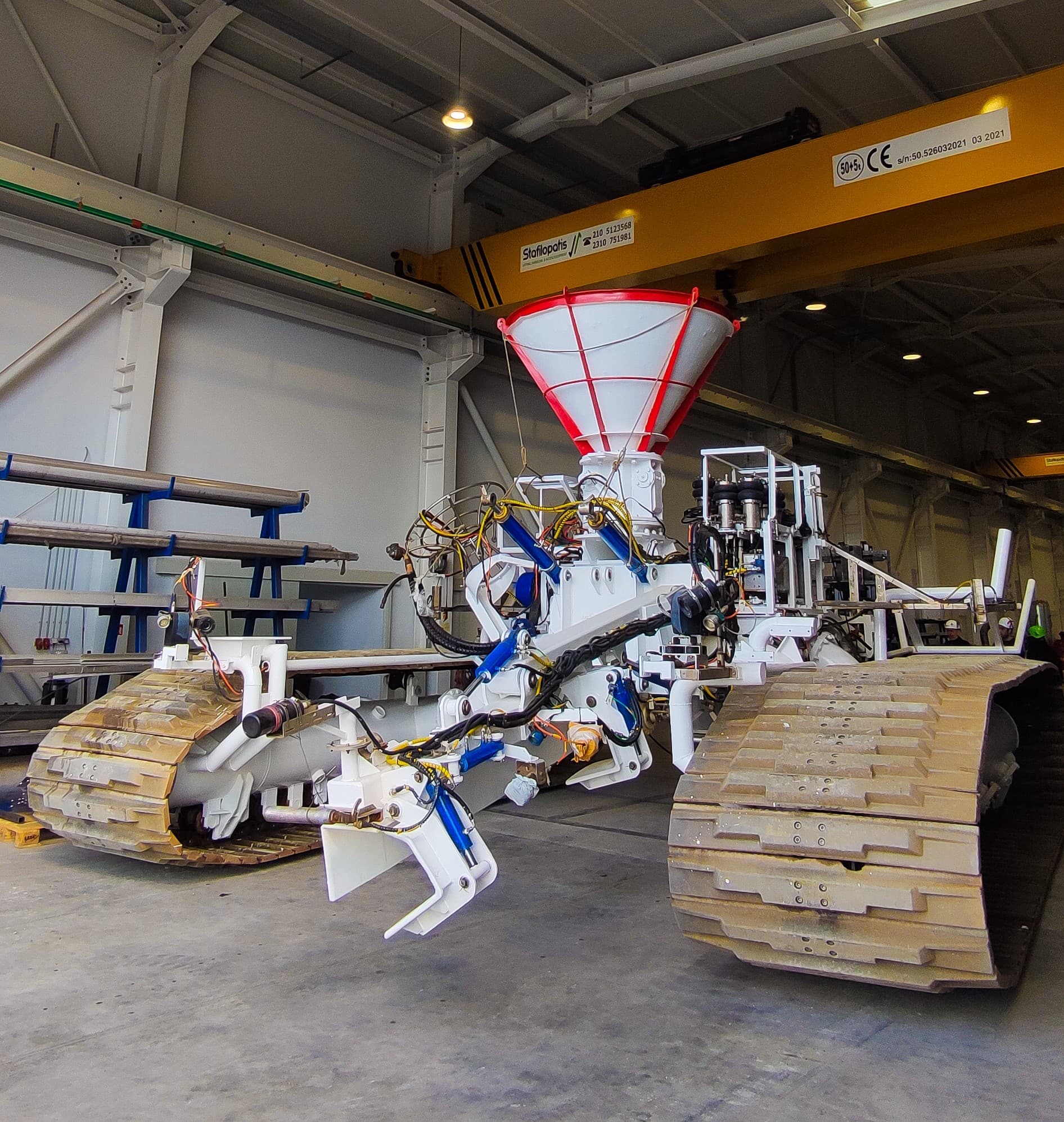

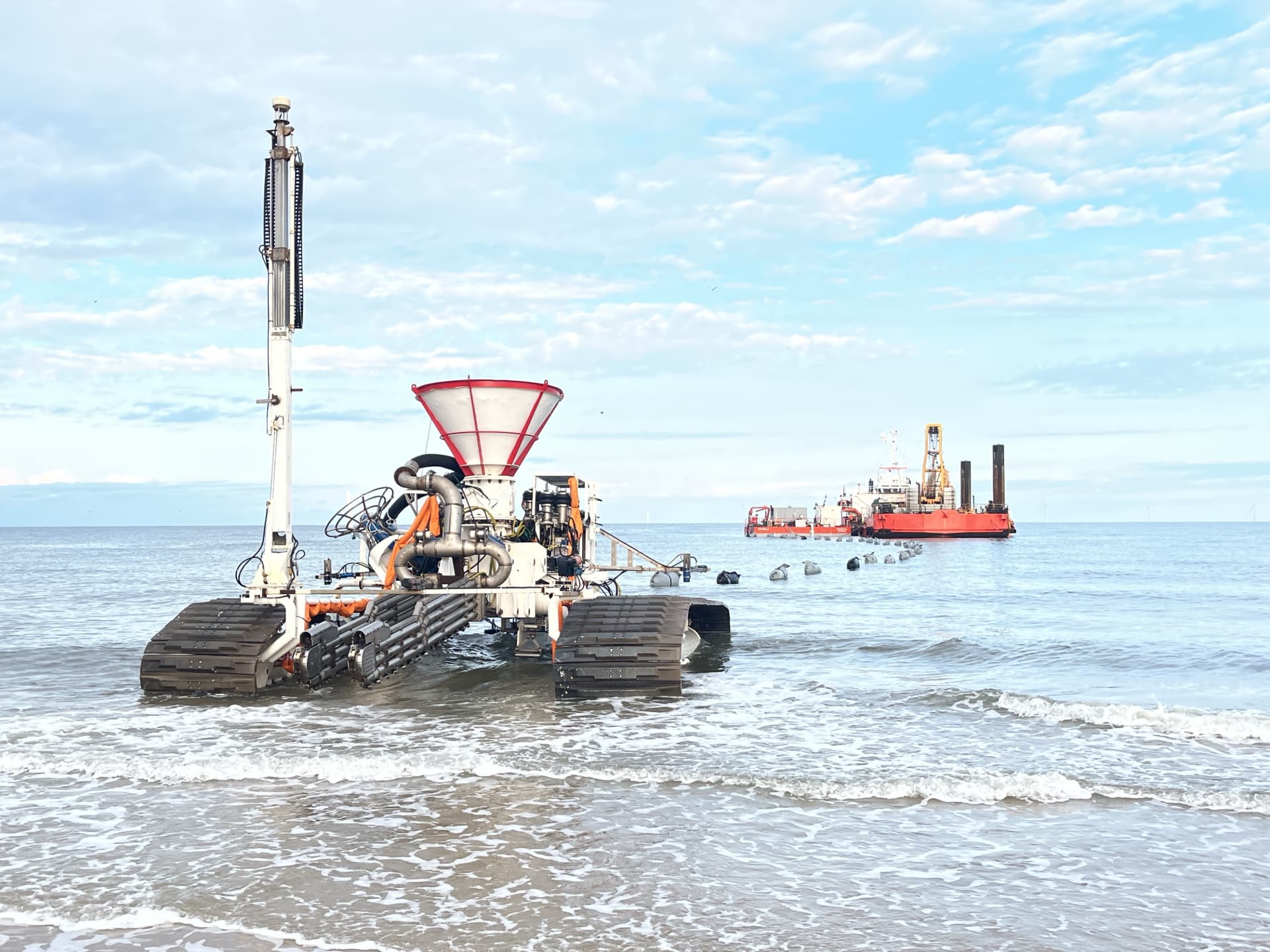

Assotrencher V Mk3 is the 3rd version of the AssoTrencher V vehicle from the AssoTrencher series, designed for both shallow and deeper trenching environments. Specifically, the Mk3 is a heavy-duty trencher capable of bearing multiple trenching tools yet lightweight in water due to sealed compartments all along its chassis.

The Assotrencher V Mk3 has a completely revisited loading system borrowed from other vehicles of the AssoTrencher family which allows it to incorporate diverless operations even in shallow water conditions.

A wide variety of tracks allow for a project-specific effective area of weight application over soft top layers of the seabed and thus apply the necessary weight depending upon project conditions.

Irrespective of the above the Assotrencher V Mk3 has the ability to carry various trenching tools in order to suit every condition possible. With this option, the vehicle can approach and tackle a wide variety of soil conditions without any compromise.

  • Dimensions
    10.3 x 6.2 x 4.3 m
  • Total Power
    950 kW
  • Weight
    27 Te in air
  • Chain
    Up to 3 MPa soil strength
  • Seafloor Gradient
    15 degrees pitch & roll
  • Depth Rating
    100 m
  • Jet
    Up to 120 kPa soil strength
